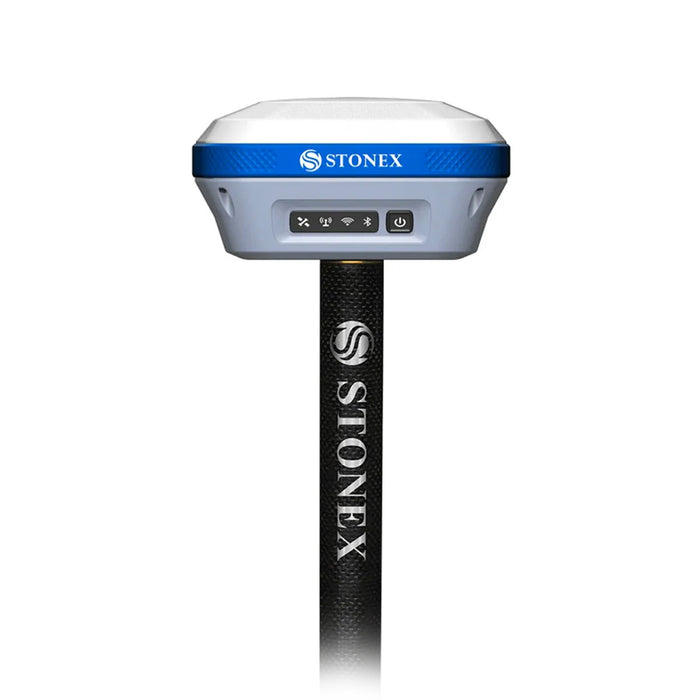

Stonex S850+ GPS/GNSS Receiver

AVAILABILITY: This item is usually dispatched same day.

Equipped with an advanced 800 channels GNSS board and capable of supporting multiple satellite constellations, including GPS, GLONASS, BEIDOU, GALILEO, QZSS and IRNSS. Stonex S850+ GNSS receiver is an ideal solution for any surveying field work.

S850+ has also L-Band correction. The advanced receiver design gives to the S850+ an excellent signal tracking ability and interference resistant capacity. Advantages of portability and speed of operation make S850+ GNSS receiver particularly suitable for fieldwork in areas of complex terrain.

Stonex S850+ is equipped with all the necessary connections, has integrated Bluetooth and internal Wi-Fi functionality; has a built-in dual frequency UHF radio, 410-470 MHz and 902.4-928 MHz and the worldwide compatible 4G GSM modem.

Stonex S850+ integrates also the new IMU System that allows tilted measurement (TILT) up to 60°: quick initialisation, fast and precise survey.

FEATURES:

• Multi constellation tracking - GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS and SBAS

• E-Bubble shows on the software if the pole is vertical and the point will be recorded automatically when the pole is levelled

• Measure points with an inclination of the pole up to 60°

• Web user interface control to initialise, monitor the settings of the receiver and to download data using laptop or PC, smartphone or tablet with Wi-Fi capability

• Large 6900mAh capacity lithium battery that gives you up to 9 hours working time

• Large capacity lithium battery and Type-C connector to recharge it easily

• Integrated UHF double frequency radio, 410-470MHz and 902.4-928MHz. Through the 4G GSM modem, so a fast internet connection is guaranteed

• IP67, combined with a high shock resistance guarantee - the maximum strength and the best water and dust tight even in harsh environments.


• Channels: 1408

• Signal Tracking:
  • GPS: L1 C/A, L1C, L2P, L2C, L5

  • GLONASS: L1, L2, L3

  • Galileo: E1, E5A, E5B, E6

  • BeiDou: B1, B2, B3, B1C, B2a, B2b

  • SBAS:

  • QZSS: L1, L2, L5

  • IRNSS: L5
• Position rate: Up to 20 Hz

• signal Reacquisition: <1 sec

• Initialisation Time RTK: <10 seconds

• Hot Start: <15 seconds

• Initialisation Reliability: >99.9%

• Internal Memory: 8 GB

• Tilt Sensor: IMU & E-Bubble (optional)

• Static: H: 2.5mm+0.5 ppm RMS, V: 5mm+0.5 ppm RMS

• Network RTK: H: 8mm+1 ppm RMS, V: 15mm+1 ppm RMS

• Code Differential Positioning: 0.4m RMS

• Dimensions:140mm x 140mm x 71mm

• Weight: 1.1kg

• Battery: Onboard rechargeable Lithium-ion 7.2V, 6900mAh

• Battery Recharge time: Approximately 4 hours from flat

• Battery Life: Up to 10 hours

• Phase Centre Height: Zero

• Operating Temperature Range: -30°C to +65°C

• Storage Temperature Range: -40°C to +80°C

• Humidity Tolerance: 100% condensation

• Water and Dust Protection: IP67

• I/O connectors 5-Pin Lemo connects to external power supply and external radio, Type-C for power and data transfer

• Voltage: 9 - 28V DC external power input with over-voltage protection (5 pin Lemo)

• Wi-Fi Interface: 802.11 b/g

• Wireless UHF: Internal Radio Tx/Rx

• Frequency: 410 - 470 MHz

• Bluetooth: V2.1 + EDR/V5.0

• Warranty: 2 Years
