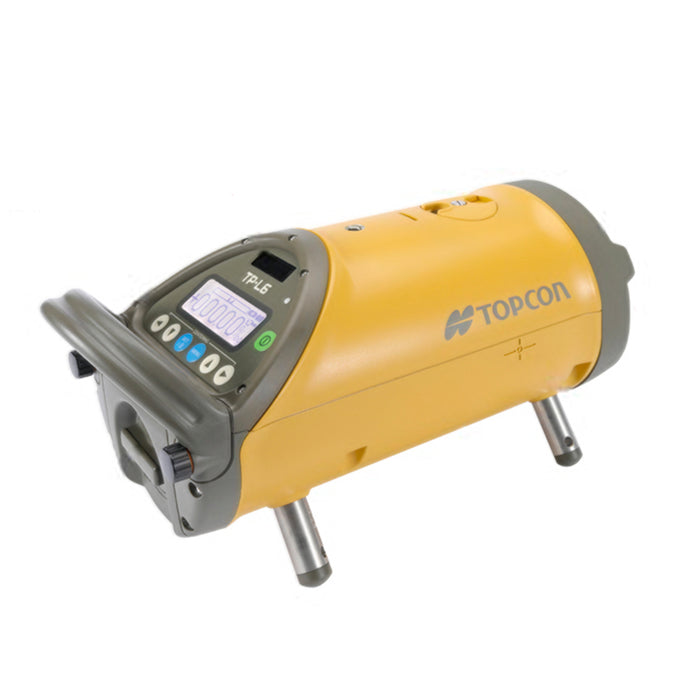

Topcon TP-L6BG Pipe Laser "Green Beam"

Topcon TP-L6BG Pipe Laser "Green Beam"

Stock Code: 1034437-11
$0.01 - $0.01
$0.01 Excl. GST

▼ Download Brochure
▼ Download User Manual


AVAILABILITY: This item is usually despatched same day.

The TP-L6 pipe laser’s smaller size, long-life battery and mobile app make the unit one of the most flexible pipe lasers on the market. This pipe laser is easier to use, fits into tighter spaces, and increases convenience and safety for workers.
Topcon pipe lasers are known for their quality. They were the first to provide green beams and auto alignment. They have the longest lasting battery on the market and now they're the first to offer a mobile app to check and control the instrument without climbing into holes.

Laser Manager, the new mobile app, puts many of the most common pipe laser functions directly on the user’s own device, such as:

  • Automatic target acquisition
  • Move the laser’s beam left, right or centre
  • Check grade status
  • Activating the optional plumb beam
  • Set or calculate grade angle
  • Change laser mode to steady, flashing or low-power
  • Check battery status
  • Viewing an electronic bubble level
  • This new functionality increases the speed of setting up the laser and reduces time workers spend in holes, low light situations and cramped spaces.
  • Same battery can be used in other Topcon equipment

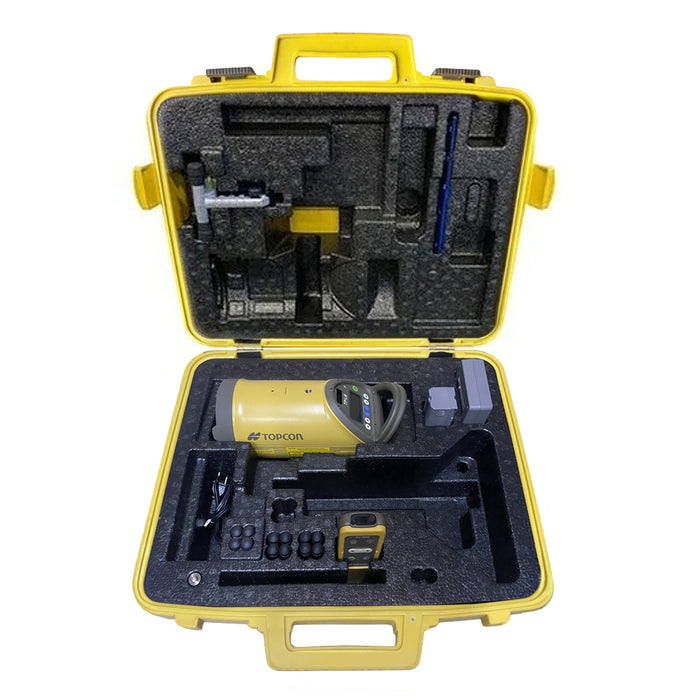

    • INCLUDES:
    • TP-L6 Pipe Laser
    • Remote control RC-500
    • Battery BDC72 (Rechargeable)
    • Charger CDC77
    • Power cable
    • Self-centring Feet
    • Single point foot
    • Carrying case
    • Target
    • Instruction Manual
    FEATURES:
    • Compact design adds flexibility
    • -15% to 40% grade setting range
    • 60-hour battery
    • Self-leveling
    • Optional plumb beam
    • Additional Android mobile app remote control and display
    • Bluetooth connection

    SPECIFICATIONS:
    • Beam Colour: Green
    • Grade Range: -15% to +40%
    • Slope Range: ±10%
    • Horizontal Accuracy: ±10 arc seconds
    • Battery Life: 60 hrs. per battery (Rechargeable)
    • Battery Charge Time: 80 hrs. per battery
    • Water Resistance: IPX6
    • Operating Temperature: -20°C to +50°C
    • Dimensions: 125mm X 250mm (without handle), 125mm X 280mm (with rear handle)
    • Weight: 3kg
    • Warranty: Five years, 1 year on remote, 90 days on batteries & chargers
