Trilex Leica Style GRZ101 Mini 360 Degree Prism Reflector

AVAILABILITY: This item is usually despatched same day

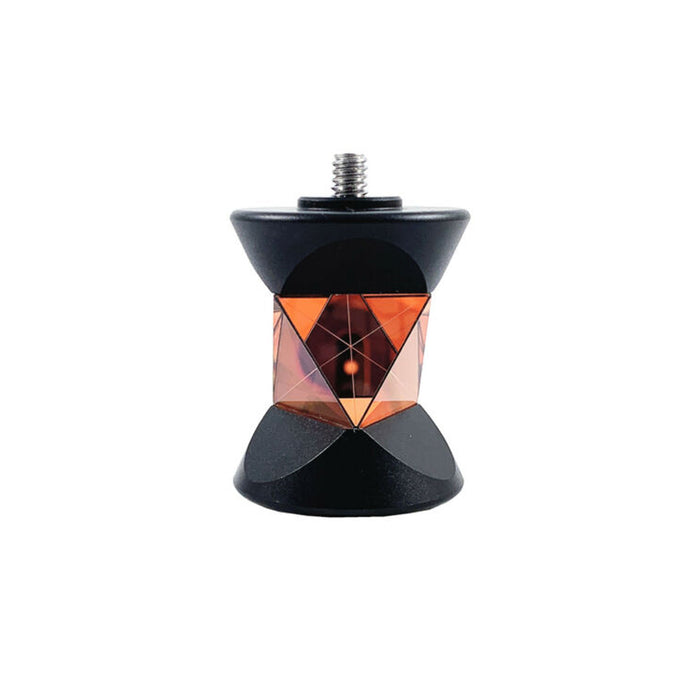

This mini reflector provides the best pointing accuracy of 1.5mm because of its compact size. The Leica Style GRZ101 360° mini prism is ideal for short range applications, providing up to 350m measurements. Copper coated prisms for clarity and anti-fogging.
Suitable for short range ATR applications. Due to its small size, the GRZ101 provides the greatest pointing accuracy of 1.5mm. Light-weight, passive reflectors for use with robotic Total Stations. For efficient operation without the need for directing the reflector toward the instrument, a 360° prism is required. This type of reflector consists of six corner-cube prisms joined together. The arrangement allows the measuring beam to reflect directly back to its source from any position on the prism set. The even distribution of the prisms provides similar offset and accuracy readings from any side.

FEATURES:

• Metal Holder

• Up to 350m Range

• 1.5mm Accuracy


SPECIFICATIONS:

• Suits: Robotic total stations

• Prism Constant: -4.4mm

• Prism Accuracy: 1.5mm

• Height: 52mm

• Outside diameter: 38mm

• Base Connector: Female 1/4 mounting thread

• Top Connector: Male 1/4 mounting thread

• Warranty: 12 months
