Trilex M2A - 45 Degree 2 Face Retro Monitoring Prism

Trilex M2A - 45 Degree 2 Face Retro Monitoring Prism

Stock Code: 90555
$30.00 - $30.00
$30.00 Excl. GST
$30.00 Excl. GST
$30.00 Excl. GST

AVAILABILITY: This item is usually despatched same day

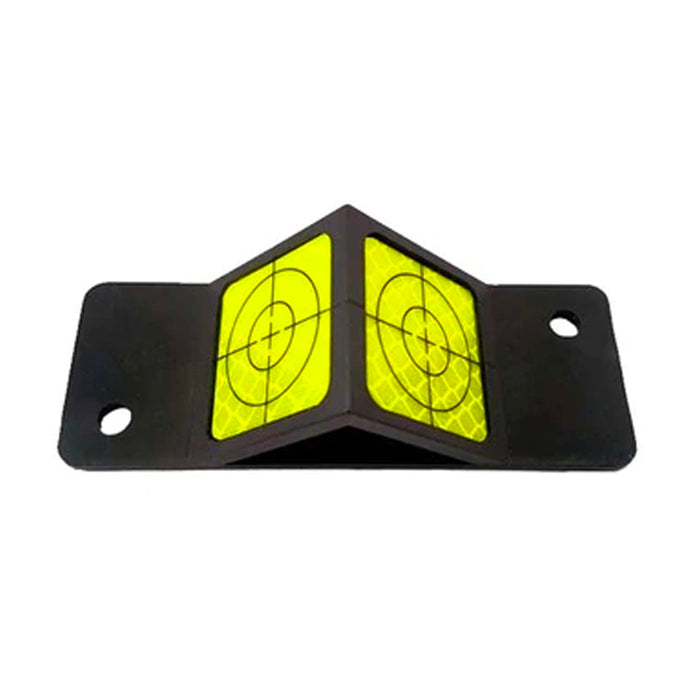

Two 30 x 30mm retro reflectors mounted at a 45 degree angle. Suitable for short-range monitoring of difficult locations, for example: bridge, tunnel and rail construction. Screw and plug or adhesive fixing

FEATURES:
  • Used for the monitoring of structures such as buildings, bridges,
    tunnels, rails, tower structures etc.
  • Waterproof and shock proof
  • Easy and secure installation of unit onto structure to be monitored.
  • Unmistakable measurement points.
  • For monitoring railway tracks where there is surrounding building work (bridge and tunnel construction, pressure grouting of railway lines etc.)
  • Measurement and monitoring are possible from almost any angle at locations which are difficult to access.
  • Roads no longer need to be closed or obstacles crossed as every measurement point can be checked from a distance of up to 200 m (range depends on the measurement equipment)
  • 3-dimensional monitoring of bridges.
  • Simple and quick measurement and monitoring of buildings, facades, supporting structures, pillars, high rack storage facilities, dams and much more.
  • For monitoring formwork during the concrete work, e.g. in the case of bridge arches and single-faced wall formworks.
  • For monitoring earth and rock movements - e.g. up steep ascents or along cliffs.
SPECIFICATIONS:
  • Suits: All total stations
  • Prism Size: 30x30mm each face
  • Maximum Distance: Approx. 80m (depending on Total Station)
  • Materials: Solid Plastic with high conspicuity reflectors

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Paul
Great simple reflector

Quite a basic design, just anchor it to the surface and it's ready to measure. The reflectors are really brightly coloured, so they are easy to line up on from a distance. I am measuring just over 500m with no problems at all.
