AVAILABILITY: This item is usually dispatched same day.

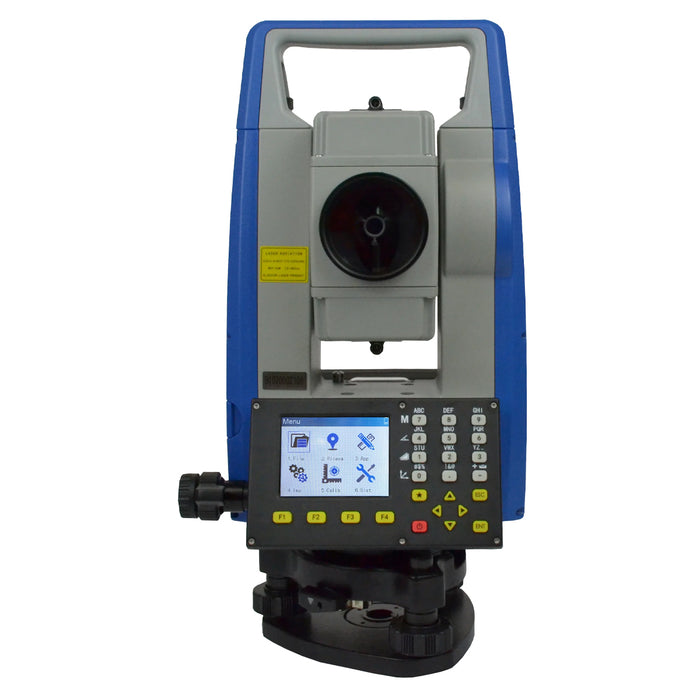

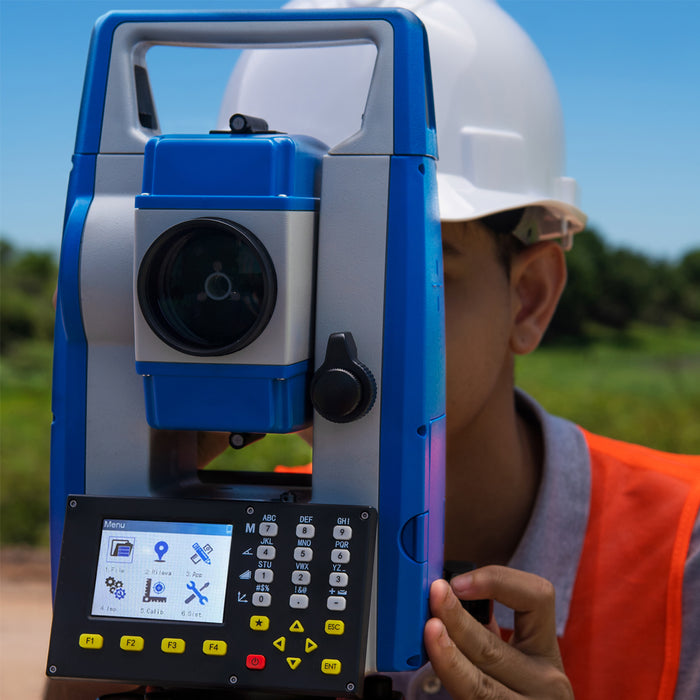

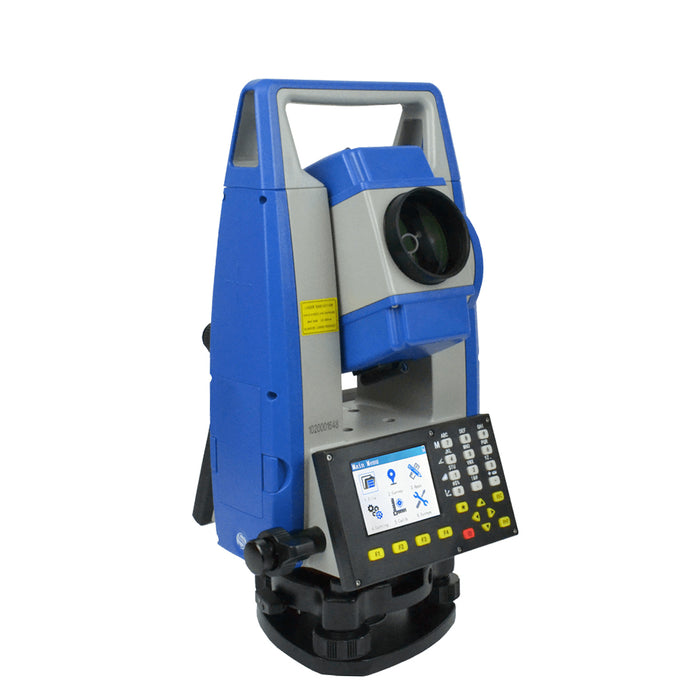

The Stonex R20 combines functionality and reliability. Optimal measurement performance up to 5000 m with a prism, 600 m reflectorless and with a 2” angular accuracy.
The high performance telescope, with illuminated reticle, provides the best sighting quality in any environmental conditions. Onboard programs make it suitable for construction, cadastral, mapping and staking out work, through the user friendly interface.
An external controller can also be linked to the Stonex R20 via bluetooth connection, giving the user the ability to us custom field software.
INCLUDES:
- R20 Total Station
- Battery charger
- USB cable
- 2x Omec LB-001 Lithium Batteries
- Long range Bluetooth
- Rain cover
- Stylus
- Tools kit
- Cleaning cloth
- Reflective sheet
- Pen Drive 8GB with Manual & Video Tutorials
- Software Cube-link

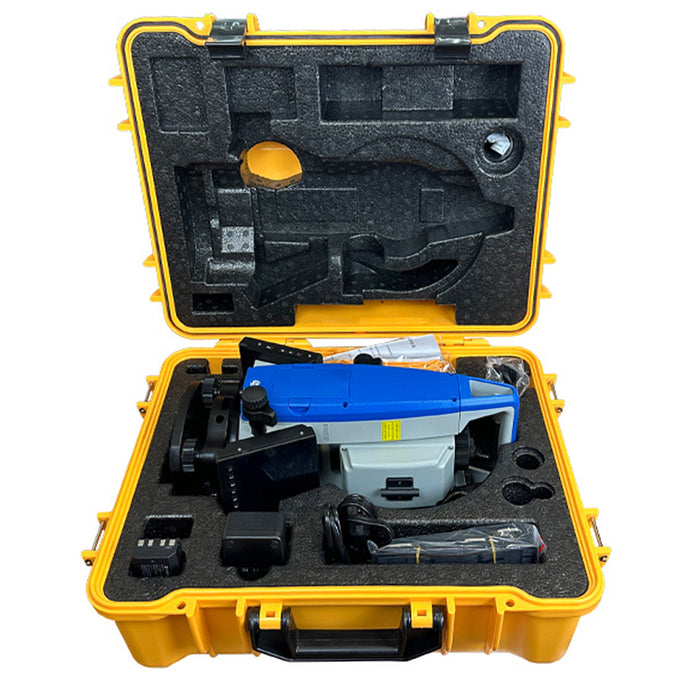

- Carry case
FEATURES:
- 600m in reflectorless mode and up to 5000m using a single prism
- Measure distances in one second, with 2mm accuracy,
- 2” accuracy
- Large bright LCD 320×240 displays
- Dual face
- Memory for more than 80,000 points
- Onboard programs
SPECIFICATIONS:
-
Accuracy: 2” (0.6 mgon)
-
Display resolution: 1” / 5" / 10"
-
Method: Absolute encoder
-
Compensation: Electronic dual axis
-
Distance measurements:
- Standard Prism: 5,000m
- Reflective sheet (60x60mm): 800m
- Reflectorless: 600m
-
Distance accuracy:
- Standard Prism: 2mm +2ppm
- Reflectorless: 3mm +2ppm
-
Weight: 5.6kg (incl. battery & tribrach)
-
Operating temp: -20°C to 50°C
-
Protection class: IP54
-
Memory size: More than 80,000 points
-
Interface: USB 20 / Bluetooth 5.0
-
Battery: 7.4V, 2,600 mAh Li-Ion
-
Operating time: 22 h (continuous angle), 19.5 hours (continuous distance measurement every 30s)
-
Warranty: 24 months
