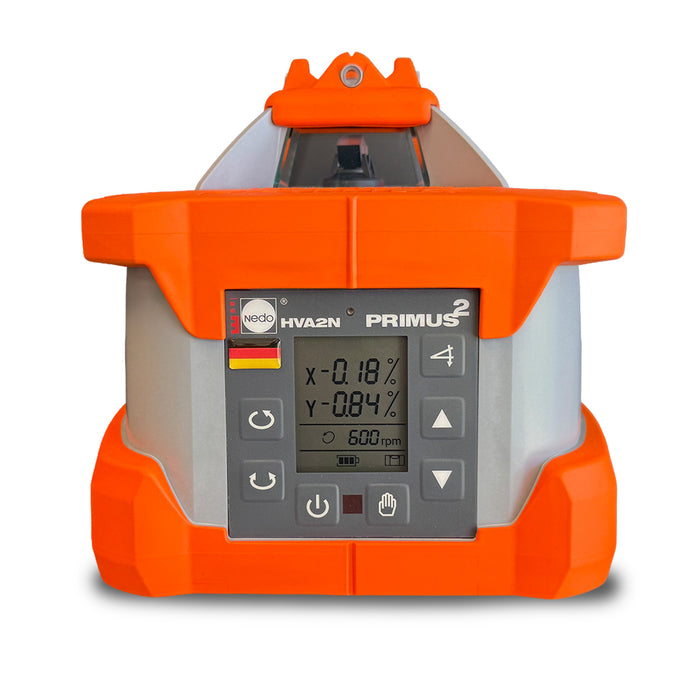

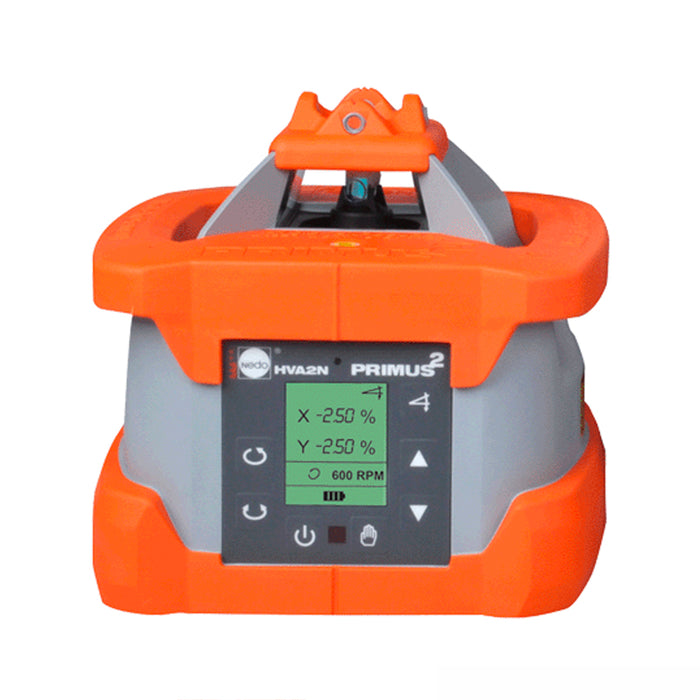

Nedo Primus 2 HVA2N Dual Grade Rotating Laser Level

AVAILABILITY: This item is usually despatched same day

From Nedo, Germany, the Primus 2 HVA2N Horizontal and Vertical, Self-Leveling, Dual Grade Rotary Laser is a multi-purpose instrument that is ideal for grading, excavating, site preparation, concrete works, and other general construction projects. With a laser receiver, it offers a long operating range that covers up to 700m in diameter. This laser level also offers high accuracy and is self-leveling within ±5 degrees.
For added precision and accuracy, the Primus 2 HVA2N features dual-axis grade control and high speed rotation at up to 600rpm. This rotating laser is simple to use, intuitive and re-levels itself immediately if the device is disturbed on the job.
With an IP66 rating, the Nedo Primus 2 HVA2N is protected from dust and low-pressure water jets. This rotary laser uses a rechargeable battery pack that can power the device up to 100 hours, making it a great companion for a long day at work.

AUTOALIGN GRADE MATCHING
Using the Autoalign Grade Matching function the laser can automatically match to an existing grade, just set the laser up level, go to one end of the existing slope, up to 50m away and at the press of a button the laser will scan for the receiver and lock on, providing the user with a display of the grade.  This function can be used in both vertical and horizontal setups.

LAYDOWN FOR VERTICAL ALIGNMENT
At the push of a button, the laser plane automatically aligns with the laser receiver COMMANDER 2 HVA2N. Ideal when batter boards are used or on facade construction.


With the „vertical alignment tool“, in vertical mode the PRIMUS 2 HVA2N can be aligned precisely with a mark below the laser. Possible applications are, for example, positioning the laser on batter boards or precise alignment with a mark on the floor. To do this, after it is switched on, the laser rotates into a reference position in which the laser beam points downwards and projects a line.



SLOPE VS GRADE, WHAT IS THE DIFFERENCE?

A Slope Laser has buttons to allow the user to tilt the laser over to an angle, however there is no display showing what the angle is. This is ideal for creating slopes where the actual angle does not matter (ie. water run-off on a driveway or pad). Some models allow single axis only and others allow dual axis slope.

A Grade Laser has the same function, however there will be a display which will show the exact angle (usually as a percentage grade), so you can dial in the exact angle required and the laser will tilt over to that gradient. Some models allow single axis only and others allow dual axis grade.




INCLUDES:

• Nedo Primus 2 HVA2N

• LCD mm detector and clamp

• Laser target

• Battery charger

• Rechargeable battery pack

• Heavy duty carry case


• Automatic dual grade in 2 axes

• Fully automatic rotating laser for horizontal and vertical applications

• AutoAlign function: automatic alignment of the laser beam to the zero mark of the laser receiver

• Robust motor-powered levelling

• Large, clear display showing rotation speed, battery level, etc.

• Automatic level control stops the laser if it gets disturbed.

• Scan function and dot mode

• High-Power red laser diode for high visibility

• Plumb beam from the top

• Rotor protection made of ultra-tough break-resistant glass

• Highly accurate even under toughest conditions

• Radio remote control for a convenient operation


• Beam Type: Red Laser Diode

• Accuracy: ±0.5mm over 10m (±1.5mm over 30m)

• Rotating Speed: 10, 60, 300 and 600 rpm

• Scanning angle: 0°, 5°, 10°, 15°

• Self-leveling System: Electronic

• Self-leveling Range: ± 5°

• Accuracy of Grade: ± 0.015%

• Setting of slopes in two axes: ± 10%, direct entry

• Power: NiMH rechargeable batteries 4,8 V, 8500 mAh

• Battery Life: Approx. 100 h

• Auto Align Range: 50m

• Operating Range: 700m

• Remote control range: 150m

• Water proof/dust-resistant: IP66

• Operating temperature: -20℃～+50℃

• Connecting thread: 5/8"

• Warranty: 6 years
