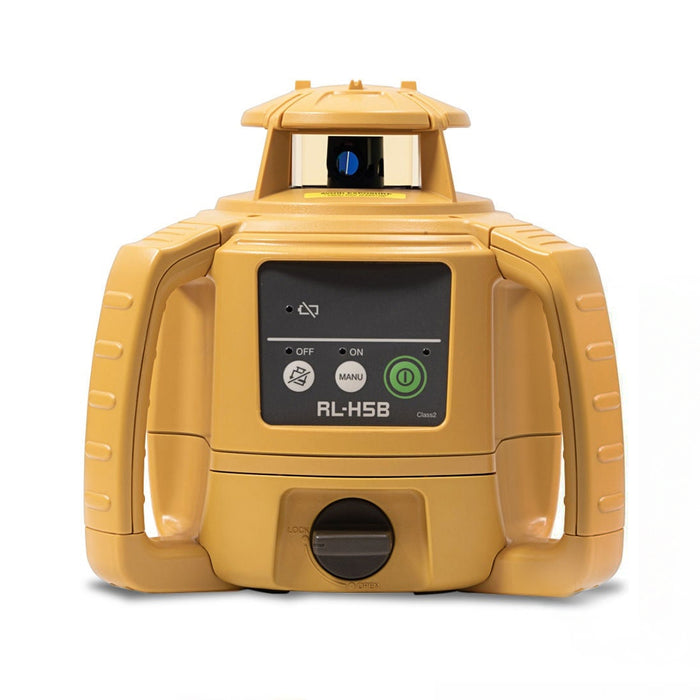

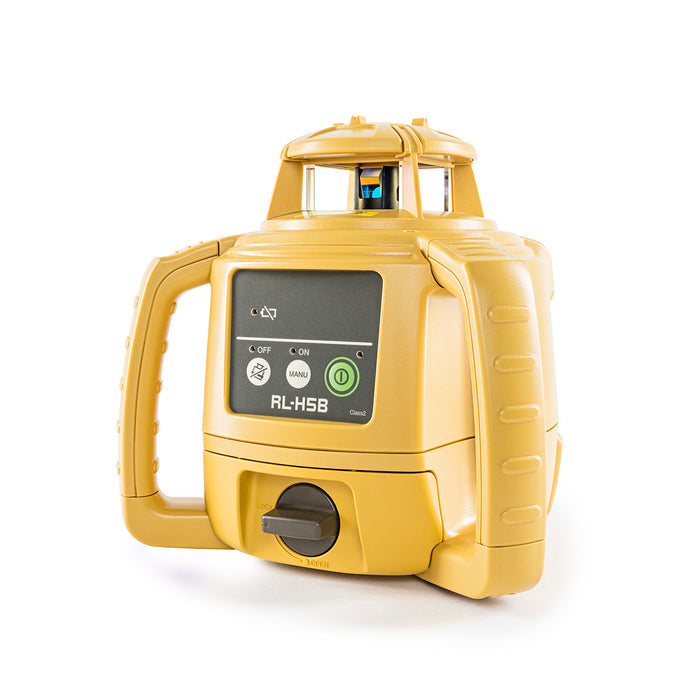

Topcon RL-H5B Rotating Laser Level

AVAILABILITY: This item is usually despatched same day

The Topcon RL-H5B Horizontal Self-Leveling Rotary Laser is a multi-purpose laser that is ideal for grading, excavating, site preparation, concrete works, and other general construction projects. With a laser receiver, it offers a long operating range that covers up to 400m in diameter. This laser level also offers an accuracy of up to ±2.8 mm at 30m and is self-leveling within ±5 degrees.
With an IP66 rating, the Topcon RL-H5B series is protected from dust and low-pressure water jets.

INCLUDES:

• RL-H5B Laser

• LS-80X Laser receiver

• Batteries

• Receiver batteries

• Receiver Holder

• Hard Carry Case


• Accuracy ±2.8 mm at 30m

• ±5 degrees self-leveling range

• Longest battery life in its class - 100 hours with four D/LR20 alkaline batteries

• Single-axis manual slope capability for grade-matching setting

• IP66 protection against dust and water

• Large dual handles for easy carrying and set up

• Fully self leveling

• Built Topcon Tough

• Machine control compatible


• Beam: 2.4mW Class 2/3R

• Beam Type: 635nm Visible Red Laser Diode

• Accuracy: ±2.8 mm at 30m
• Self-leveling System: Electronic

• Self-leveling Range: ± 5°

• Power: 4 'D' Size Alkaline Batteries

• Battery Life: Approx. 100 hrs

• Dimensions: 205 × 211 × 172ｍｍ
• Range: 1m - 200m (400m diameter)
• Rotation Speed: 600 RPM

• Water proof/ dust-resistant: IP66

• Operating temperature: -20℃～+50℃

• Warranty: Five years, 1 year on receiver, 90 days on batteries & chargers
