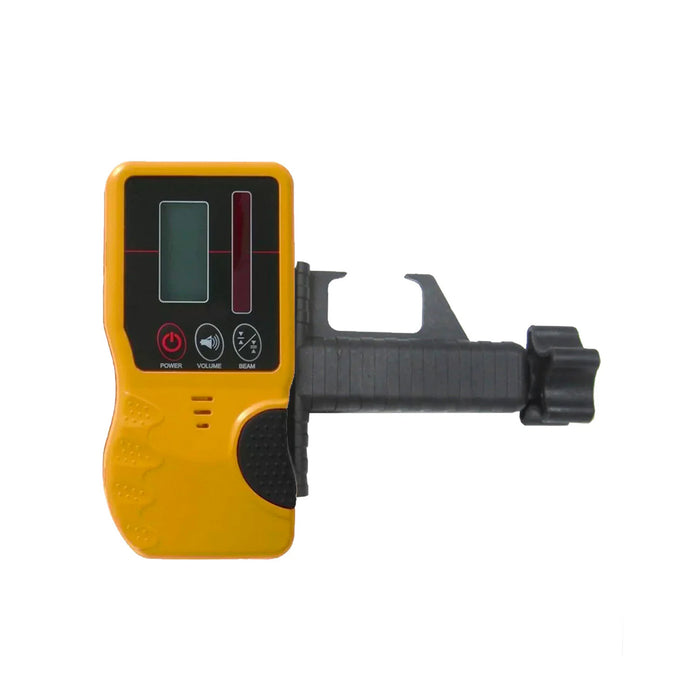

Laser Receiver and Clamp Topcon 2LS / Futtura CR3 / PLS HVD 505 R

Laser Receiver and Clamp Topcon 2LS / Futtura CR3 / PLS HVD 505 R

Stock Code: 91097
$138.00 - $138.00
$138.00 Excl. GST
$138.00 Excl. GST
$138.00 Excl. GST

AVAILABILITY: This item is usually despatched same day

A single crew member can take this durable, rugged sensor and quickly, accurately finish a range of jobs from sub-base leveling to concrete finishing.
Works with almost all rotating red beam lasers no matter what brand. This low cost receiver is great quality and economy.

FEATURES:
  • Holder clamp to attach the receiver to a level staff or piece of timber is sold separately.
  • Simple to use
  • Front and Rear display
  • Rugged design
  • Sensitivity and volume controls
  • Auto shut off after 20 minutes
SPECIFICATIONS:
  • Minimum laser rotation speed required: 600rpm
  • Battery: 9v battery
  • Graduation: Up, down and level
  • Display: Front and back
  • Beam detection window: 45mm / 1.73in
  • Beam detection precision: High precision: ±1mm / Normal precision: ±2mm
  • Beam detection indication: Liquid crystal (both sides) and buzzer
  • Battery life: Approx. 35 hours
  • Auto shut-off delay: Approx. 20 min without beam detection
  • Water and dust resistance: IP65
  • Operating temperature: -20˚C / -4˚F to +50˚C / 122˚F
  • Weight: 196g / 6.91oz
  • Warranty: 12 months
