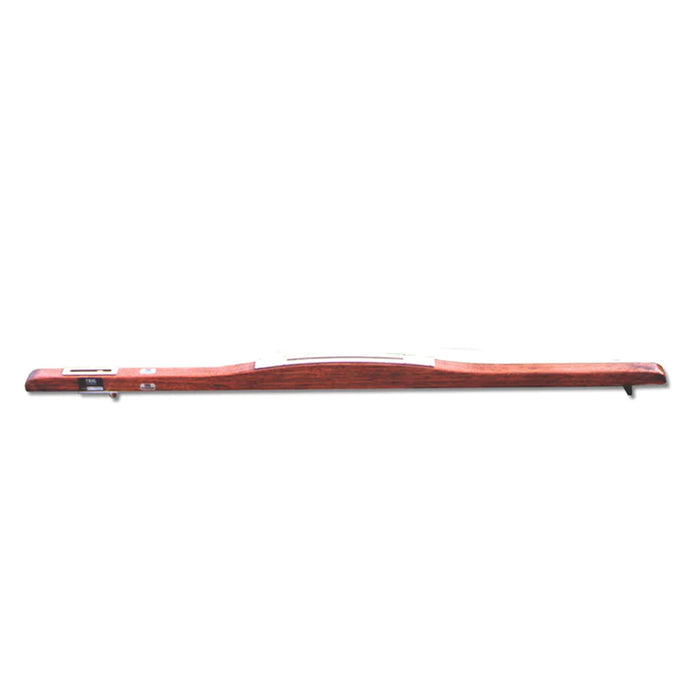

Trig Instruments Rail Track Gauge

▼ Download Brochure

AVAILABILITY : This item is usually despatched same day

Manufactured in New Zealand by Trig Instruments. Bulk pricing available for orders of 10 or more units, please enquire.

Rail companies around the world are demanding more stringent controls on track maintenance to save lives and money on expensive repairs. This has brought about the need for Trig Instruments to develop the easiest to use, most reliable and accurate gauge to measure rail track width and super-elevation.
Working with track and structures managers around the world, we have taken the features that the users of track gauges want and refined them to create what we believe are perfect track gauges.
With a hardwood body that gives warmth of touch on a cold day, that aluminium and steel cannot offer, and the strength required for work on rail systems.
The scales are all made from tough laser etched aluminium. The scales are all available in metric or imperial readings. The only moving part on the gauge is constructed from solid nylon, so it is hard wearing, will not crack or shatter and resists oil, acids, diesel etc.

INCLUDES:

• Rail Track Gauge

• Carry Bag


• Designed and manufactured in New Zealand
• Only 1 'heavy duty' moving part
• Made from tough hardwoods
• Fitted with stainless steel anti-tamper screws
• Tough bronze foot
• Available in metric or imperial readings
• Supplied with heavy duty carry bag

• Suits track widths: 1068mm standard

• Body construction: Hardwood

• Dimensions: Main: 35mm (W) x 1300mm (L) x 70mm (H) (dimensions vary for different track widths)

• Weight: 1850 Grams

• Accuracy: Track width reads to 2mm, Track cant reads to 2mm

• Width accuracy: ± 2mm

• Operating Temperature: -25° to +60° C (Please note when used in the sun, temperatures on the vial will vastly exceed the air temperature due to solar radiation and greenhouse effect)

• Cant accuracy: ± 2mm at zero
